Duct & Supporting structure

  • Design of supporting structure for Biplane damper
  • Tapping point in existing duct modifications

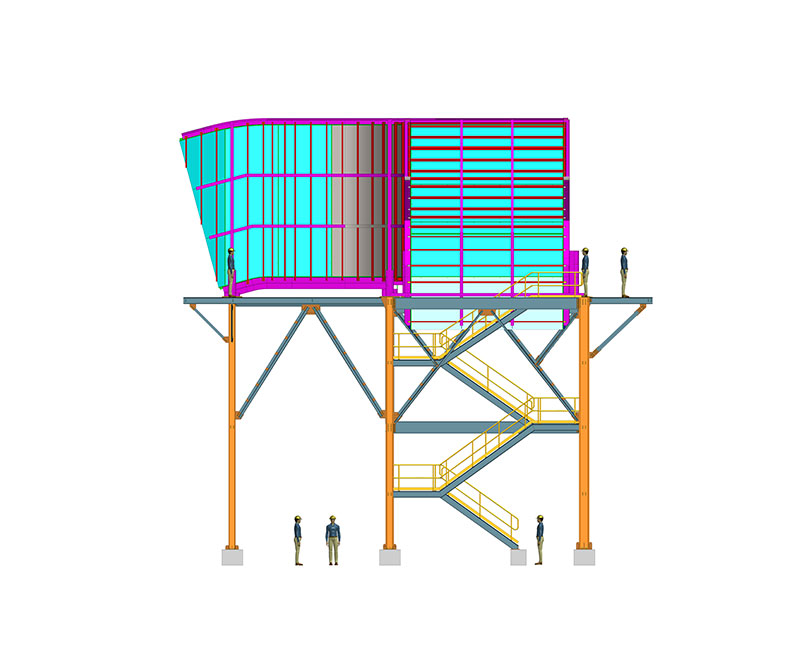

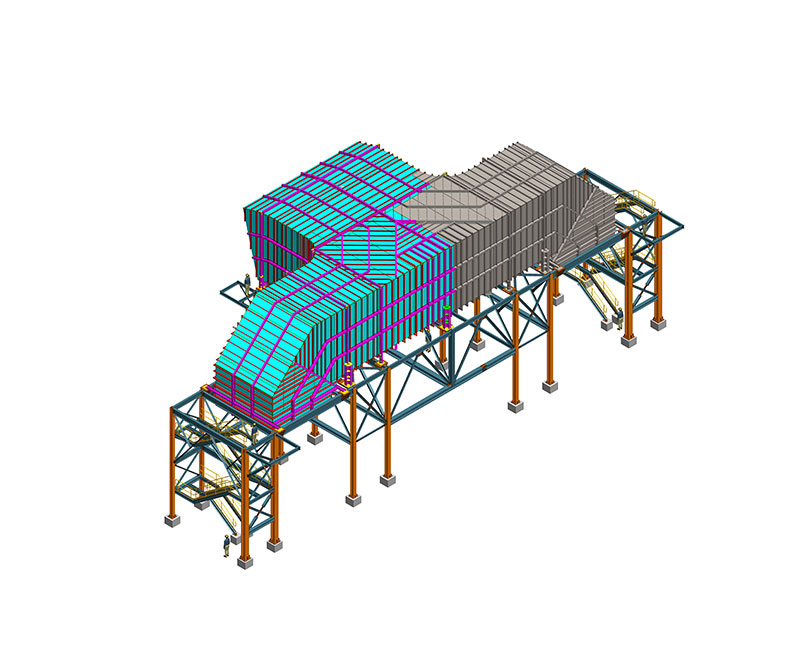

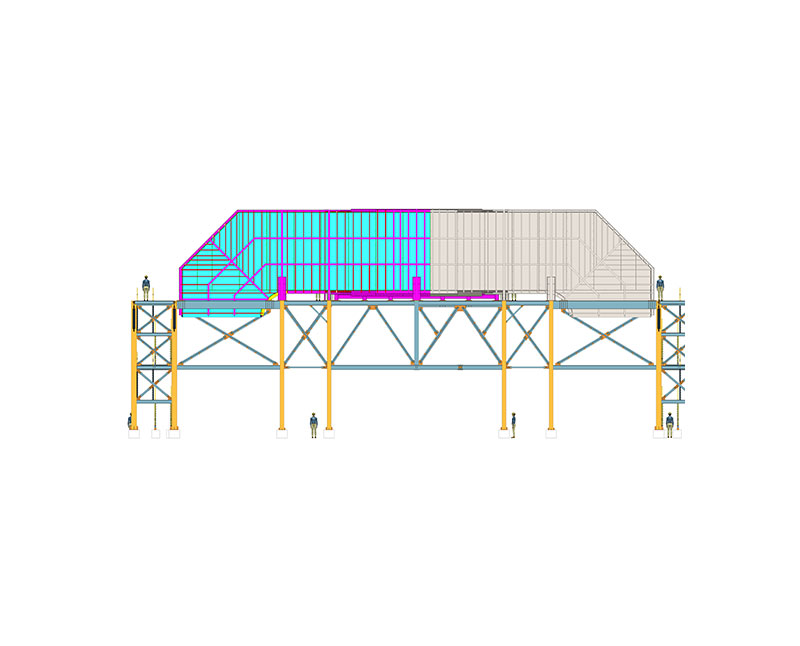

  • Design of duct from ID fan to absorber with stiffener member and portal columns
  • Design of for internal supporting truss of Duct Design of Duct Supporting Trestles
  • Providing fixed point in the Duct and arriving thermal movement, Expansion joint movement values, Sliding bearing and base plate details
  • Tapping Point location and Biplane Damper installation drawings, Standard welding details to be followed for fabrication
  • Preparation of Erection GA as per the layout

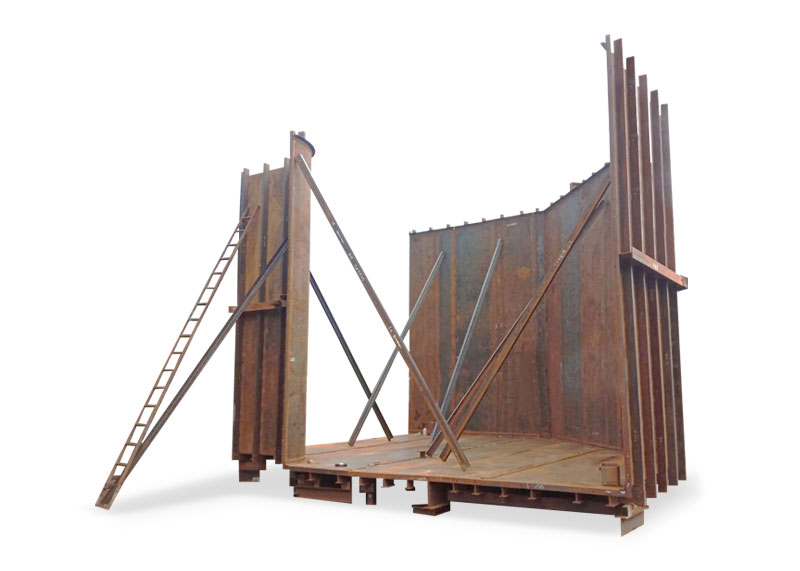

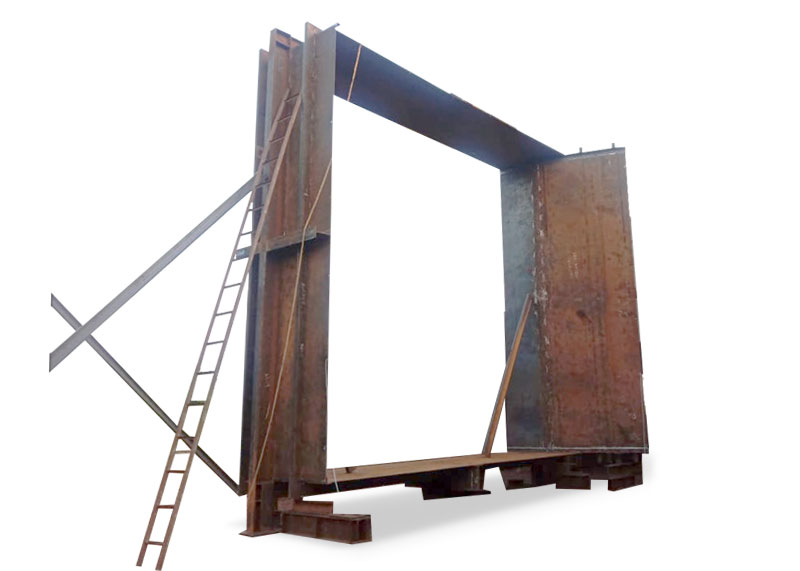

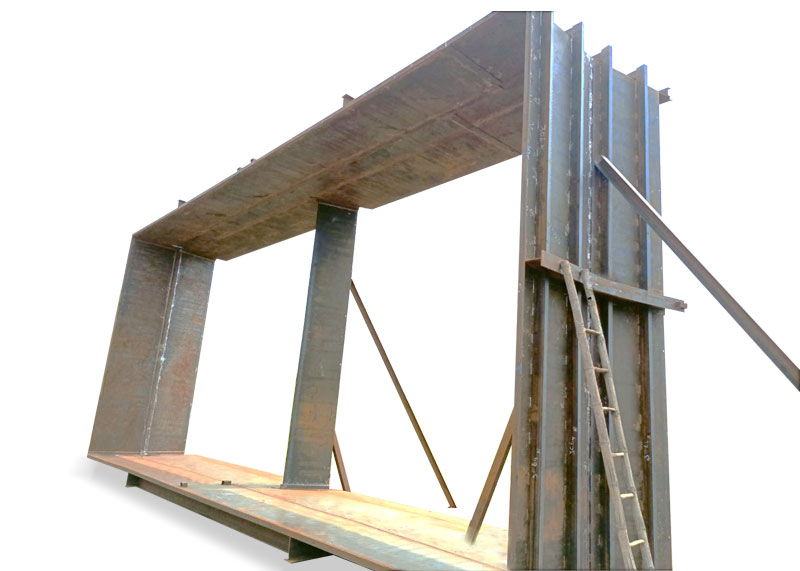

  • Preparation of fabrication drawings for duct panels along with cutting plan
  • Fabrication drawings BOQ Preparation
  • Preparation cutting plan for duct panel plates

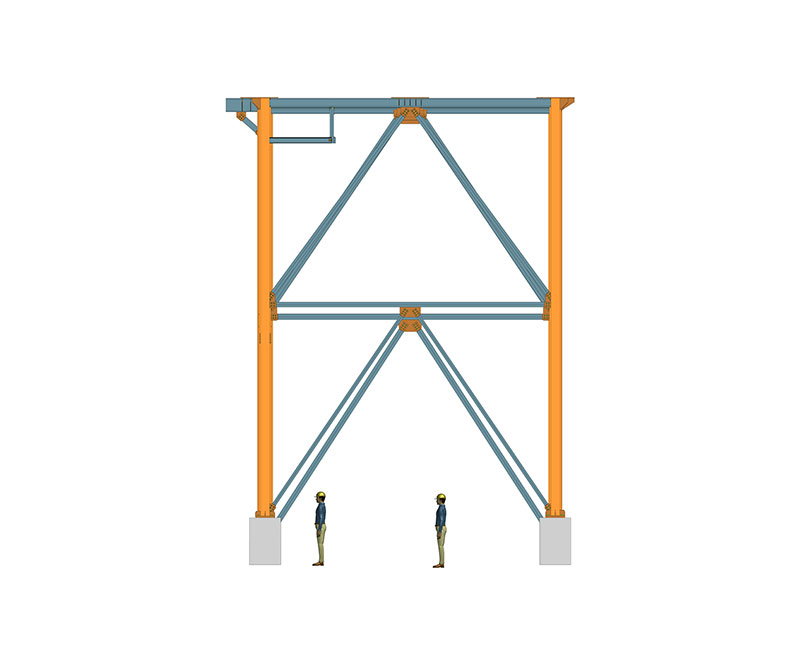

  • Preparation of fabrication drawings Duct Supporting Trestles
  • Preparation of fabrication drawings of internal truss support
  • Preparation of fabrication drawings of internal truss interconnection support
  • Preparation of fabrication drawings of guide vanes, Providing 3D model for integration with SP3D or PDMS
