Inline Pressure balance
Expansion Joint

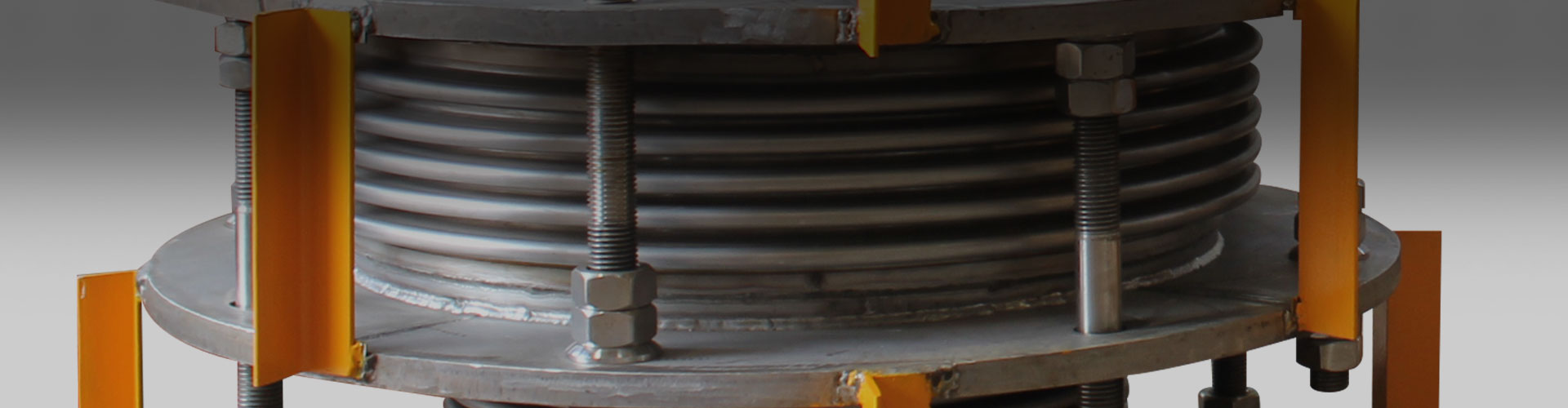

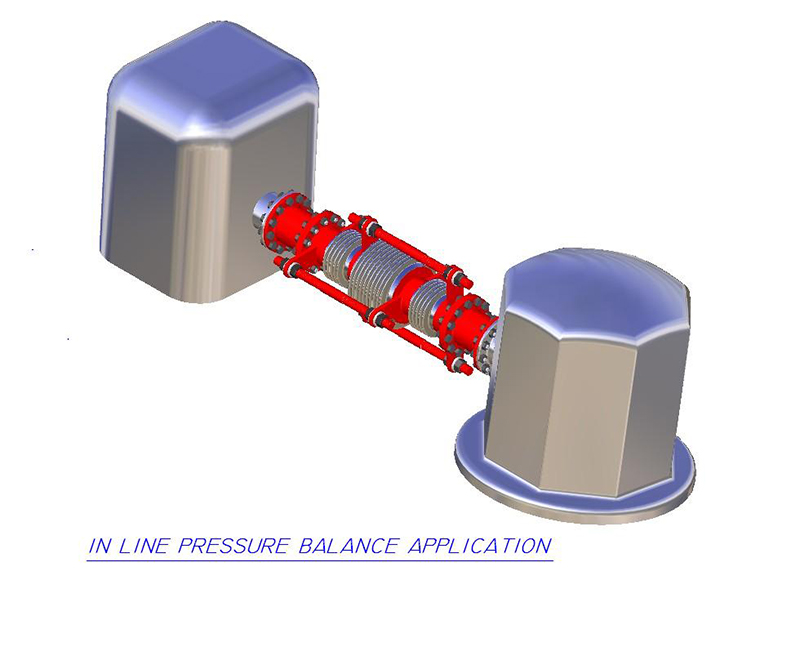

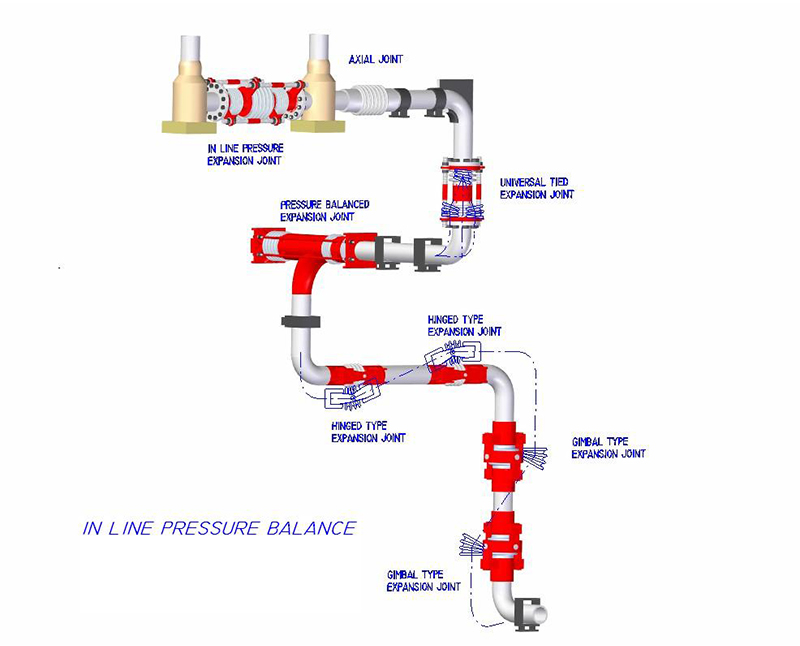

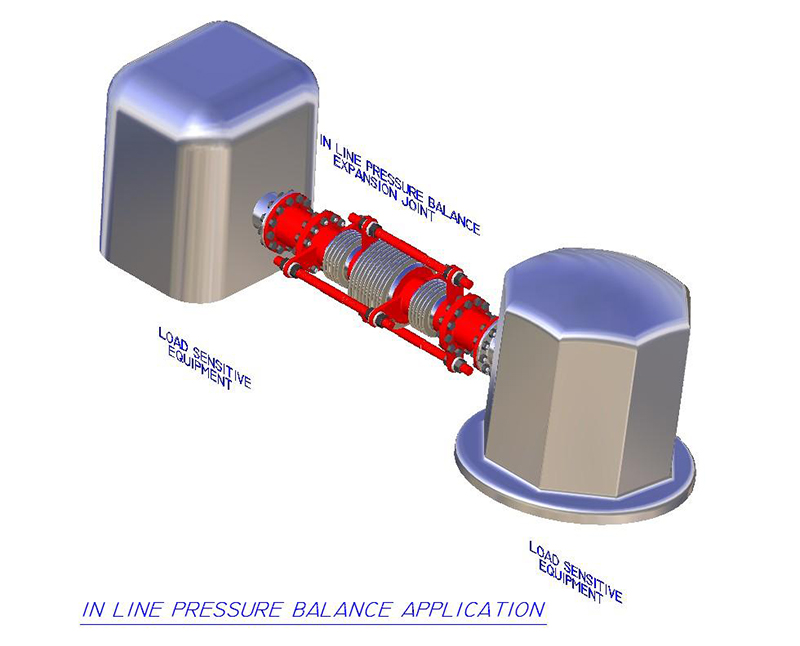

This expansion joint is usually used in straight pipe run between two load sensitive delicate equipment were minimum forces and movements are required and main anchor is not possible.

Balancing bellow having twice the area of the line bellow to create an annular pressure chamber that produces a balancing pressure thrust force.

The typical arrangement of the tie rods transfers and balances the pressure thrust.
